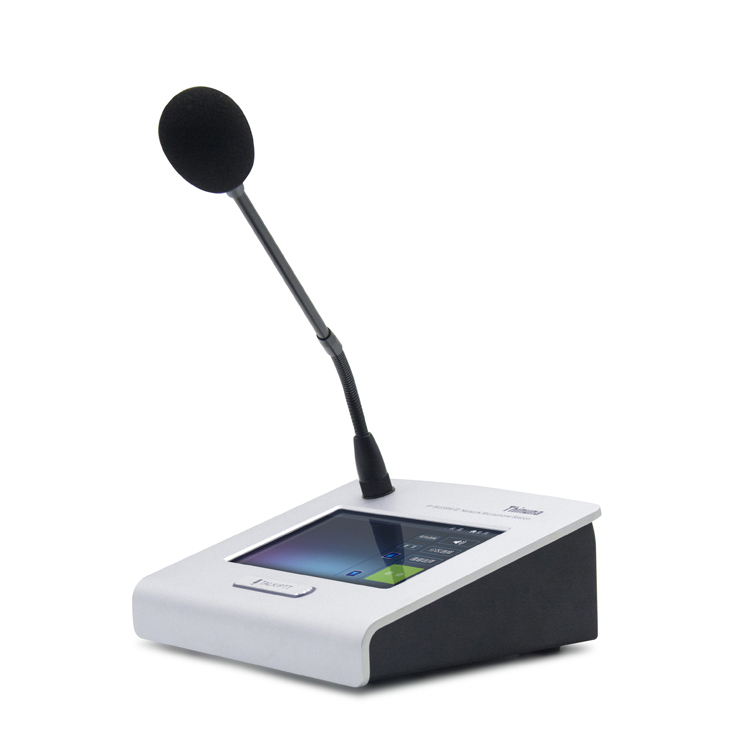

Thinuna IP-9633RM III Network Microphone Workstation

Product Description:

1.  Any place with an Ethernet port can be accessed. It can play network audio and can accept the access and control of servers and other IP network devices;

2.  Network fault self-diagnosis, network and service status display;

3.  New desktop appearance design, 7-inch TFT true color screen, graphical interface display, full-capacitive touch screen control, convenient and fast, high-end and beautiful;

4.  The core equipment of network intercom, which can directly broadcast to the partition and various types of playback equipment;

5.  Can directly paging and two-way talk with the intercom equipment on the network.

6.  External gooseneck microphone, built-in speaker (5W);

7.  Support multi-party calls during intercom;

8.  Paging and intercom PTT (Push To Talk) control function;

9.  Line input and output port, which can transmit local audio signals to the network;

Specification:

Model No.:IP-9633RM III

Network interface:Standard RJ45, 10M/100M network port, network port comes with upgrade function

Support protocols:TCP,UDP,IGMP,ICMP,ARP

Audio format:PCM(Uncompressed format)，ADPCM,MP3

Input:-10 dB,RCA, stereo

Output:0dB,RCA, stereo

Frequency response:Aux:20Hz~20kHz;Mic: 50Hz~15kHz

Touch screen:7 inches; resolution: 1024 × 600; color: 64K color, 16RGB, true color

Text:GUI, picture, animation display and touch control

EQ:Treble：±12dB at 10kHz;bass：±12dB at 100Hz

Phantom power:DC24V

UART:RS-232

THD:＜0.01% at 100Hz~10kHz

SNR:＞90dB

Power supply:External power supply DC24V,1A

Power consumption:<10W

Weight:1.7kg

Dimension:218（W）×80（H）×187（D）mm；Gooseneck microphone length：390mm
